EXTERIOR HPL

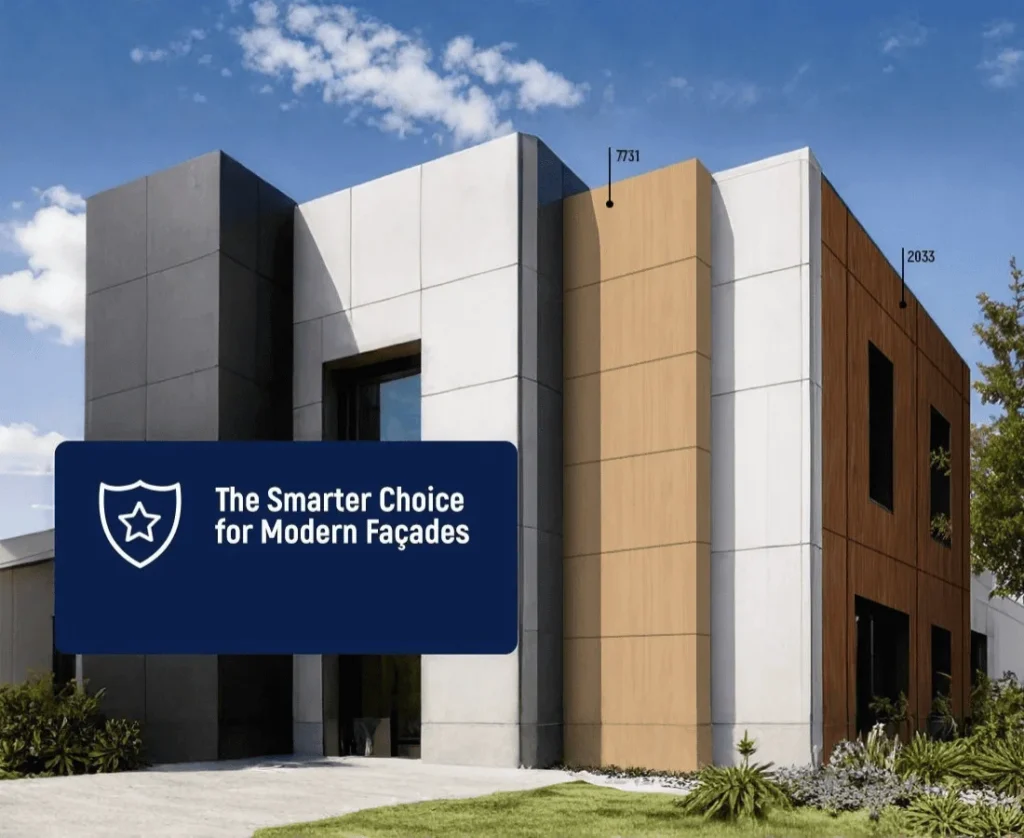

Exterior HPL Cladding Panels for Architectural Facades
Engineered for lasting colour, superior durability and dependable performance in demanding exterior environments. Samrat Exterior HPL panels are high-density compact laminates developed specifically for ventilated façades, exterior wall cladding, balconies, soffits and other outdoor architectural applications. Manufactured under controlled high pressure and temperature, every panel combines structural strength, weather resistance and architectural design flexibility—helping façades retain their performance and visual appeal across changing climates.
*Terms and conditions apply.
What Is Exterior HPL?
Exterior High-Pressure Laminate (HPL), also known as compact façade laminate, is a self-supporting architectural panel manufactured by compressing multiple layers of resin-impregnated kraft paper together with a decorative surface under high temperature and pressure. Unlike ordinary interior laminates, Exterior HPL is specially engineered to withstand prolonged exposure to real exterior conditions while retaining its strength, stability and appearance.
UV Radiation
Humidity
Variations
Pressure
Contaminants
Wear
Resistance
Maintenance

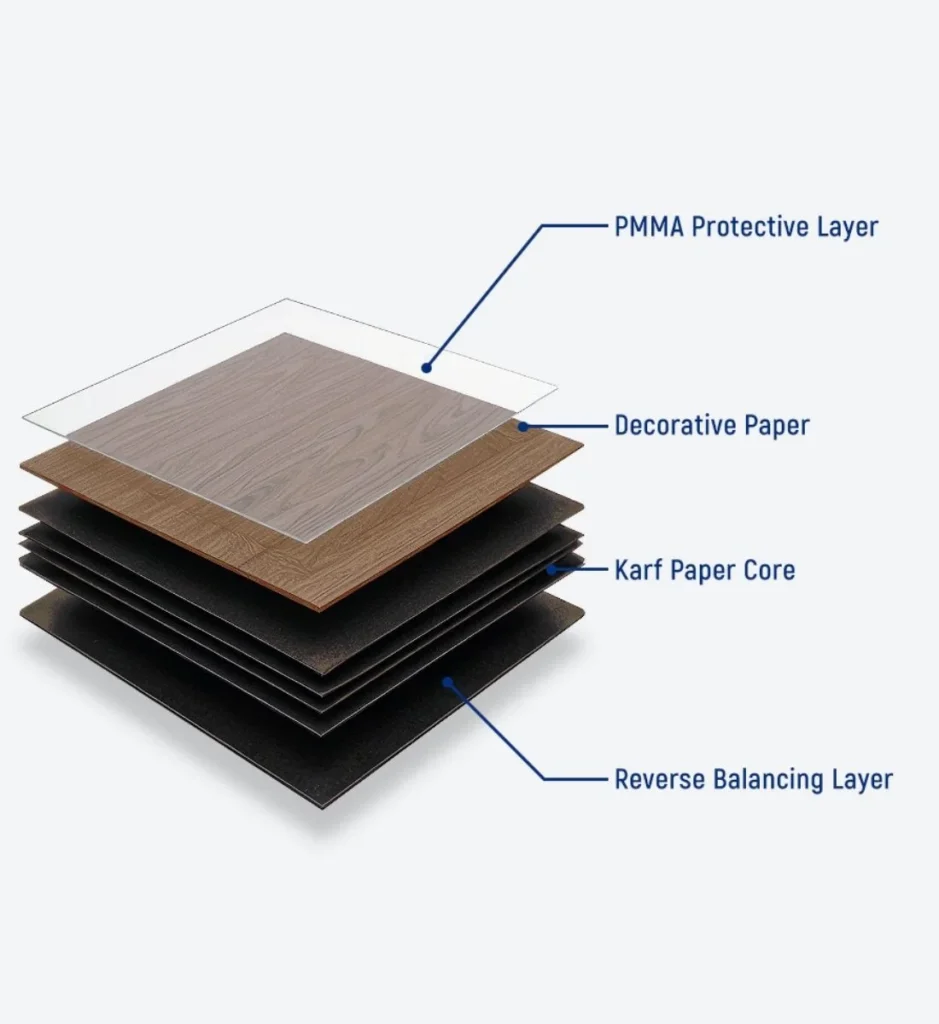

Exterior HPL Manufacturing
Why Architects Choose Exterior HPL for Facades
Exterior HPL combines engineering performance with design flexibility, making it one of the most reliable and efficient façade materials for modern architecture.
Long-Term Weather Resistance
Engineered to withstand prolonged exposure to UV radiation, rain, humidity and temperature variations.
Colour and Design Stability
High-quality exterior surfaces with light-stable pigments help retain the original appearance for years.
High Mechanical Strength
Dense and compact construction delivers excellent resistance to impact, bending and everyday stresses.
Low Maintenance
Non-porous, smooth surfaces are easy to clean and do not require painting or polishing.
Design Flexibility
Wide range of colours, textures and finishes to create unique façade expressions and architectural identities.
Replaceable Panel System
Individual panels can be removed and replaced easily without affecting the entire façade.
Why Specify Samrat Exterior HPL?
Backed by deep expertise, advanced manufacturing and continuous innovation, Samrat Exterior HPL is engineered to deliver uncompromising performance, reliability and design freedom for building façades worldwide.

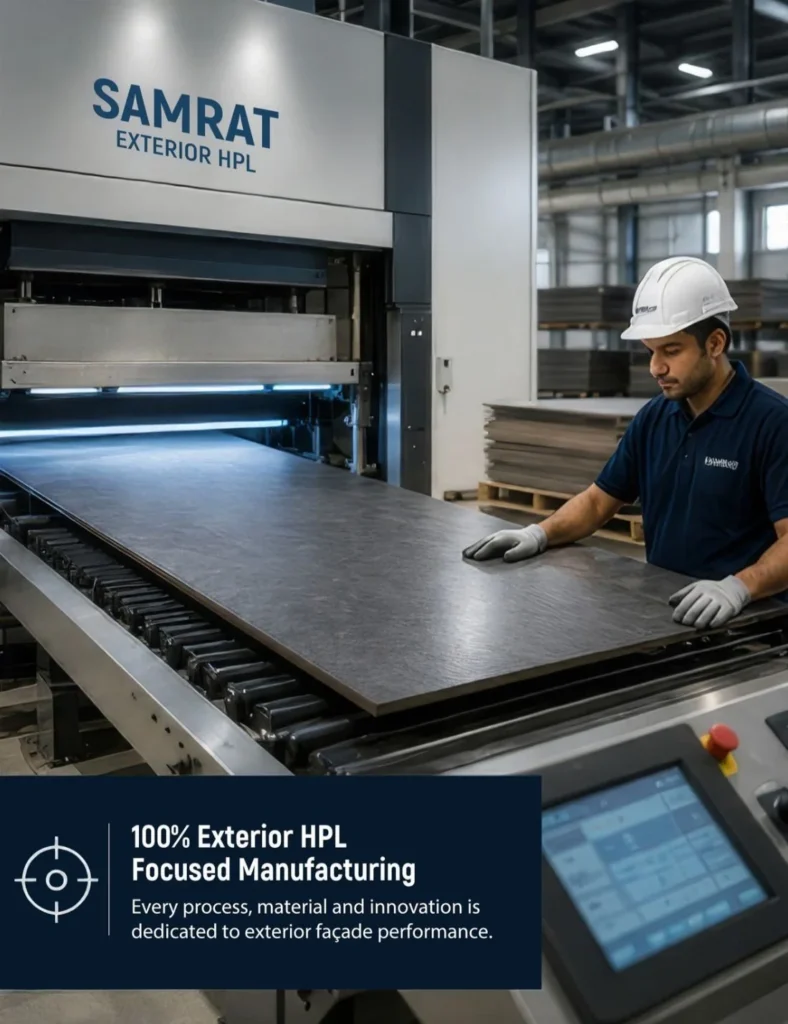

100% Focused on Manufacturing Exterior HPL
We are a 100% dedicated exterior HPL company. Every resource, process and innovation is centred around exterior performance.
38 Years of Dedicated Exterior HPL Manufacturing
Since 1988, our sole focus on exterior HPL has helped us build unmatched expertise and product reliability.
High-Density Compact Engineering
Advanced high-pressure, high-temperature manufacturing creates dense, stable panels with excellent strength.
Tested UV & Weather Performance
Extensive testing ensures excellent resistance to UV radiation, weather exposure, moisture and extreme climatic conditions.
Premium Designs & Finishes
100+ exterior designs in solids, woodgrains, stones, metallics and abstracts to bring every architectural vision to life.
Fire-Retardant Options & Global Standards
Available in fire-retardant grades tested to international standards including EN 13501-1 (B-s1,d0) Israeli.
Global Certifications You Can Trust
FSC® Certified, CE Marked, EPD Certified, ISO Certified and low-emission (E0 / E1 / E05) options for sustainable projects.
Technical Support at Every Step
From product selection and detailing to installation guidance, our technical team supports your project from concept to completion.
Tested Beyond Appearance
Rigorously tested. Consistently reliable.
Every Samrat Exterior HPL panel goes through a series of stringent tests to ensure it delivers proven performance in real exterior conditions. Our commitment to quality is verified at every stage.
Xenon Arc exposure up to 3000 hours to ensure excellent colour stability and UV resistance.
Low water absorption for high dimensional stability and long-term durability.
Tested for thickness swelling and length/width stability under varying conditions.
High impact strength to withstand harsh handling and external stress.
Ensures excellent bending strength and structural performance.
ΔE values measured after UV exposure to ensure minimal colour change and lasting aesthetics.
Ensures optimal surface properties for long-term cleanliness and performance.
Tested to international standards including EN 13501-1 (B-s1,d0)Israeli.
Every batch is checked for thickness, density, surface finish and visual consistency.
FSC®, CE, EPD, ISO, Low Emission (E0 / E1 / E05) and more – for sustainable and reliable projects.
Performance Designed for Exterior Environments
Engineered with advanced technology and tested to global standards, Samrat Exterior HPL panels deliver proven performance in every condition.
Resists UV degradation and maintains colour stability for years.
ISO 4892-2Withstands rain, wind, heat, cold and freeze-thaw cycles.
EN 438-6Low water absorption prevents swelling and ensures durability.
EN 438-2 (5.3)Excellent flatness and stability in all climate conditions.
EN 438-2 (5.9)High core density provides superior impact strength.
EN 438-2 (5.10)Durable surface resists scratches and abrasion for long-lasting beauty.
EN 438-2 (10)Resists chemicals, acids, alkalis and common stains.
EN 438-2 (12)Non-porous surface allows easy removal of graffiti and marks.
Internal Test MethodPerforms exceptionally in coastal and industrial environments.
ISO 9227 (Salt Spray)Available in fire-rated options to meet global fire safety standards.
EN 13501-1 (B-s1,d0)E0/E1/E05 certified panels for healthier indoor and outdoor environments.
EN 16516 / ISO 16000Surface options with antimicrobial and antiviral protection.
ISO 21702 / ISO 22196Smooth, non-porous surface ensures easy cleaning and low maintenance.
Internal Cleanability TestHighly resistant to termites, fungi and mildew for long-term protection.
EN 117 - Durability Class 5
Exterior Surface Protection Against UV and Weathering
Exterior HPL is engineered with advanced surface technology that defends against harsh outdoor conditions—ensuring lasting performance and colour beauty for decades.
Standard laminates lack UV-stable formulations and protective surfaces. Prolonged sun exposure causes fading, chalking, cracking and delamination.
We use premium, light-fast pigments that resist UV degradation and maintain colour integrity for years.
Special UV absorbers and HALS stabilisers protect the surface from harmful radiation and extend product life.
A high-performance PMMA (acrylic) surface or approved exterior technology creates a durable, weather-resistant barrier with excellent UV protection.
Tested as per ISO 4892-2 (Xenon Arc). Panels are exposed to intense UV, light and moisture cycles to evaluate colour and gloss retention.
Accelerated tests simulate years of exposure in a short time. Actual outdoor life depends on climate, orientation, colour choice and maintenance.
Darker shades absorb more heat and may show slight chalking. Bright and intense colours can fade faster than mid tones. Our advanced technology minimises visible changes.
Fire-Retardant Exterior HPL Options
Samrat Exterior HPL is available in standard and fire-retardant (FR) options, tested to recognized international standards for reliable fire safety performance.
Standard vs. Fire-Retardant: Not the Same
Standard grade panels are not designed for fire performance requirements. Fire-retardant (FR) grade panels are formulated and tested to deliver enhanced reaction-to-fire behaviour.
Fire Classification Applies to a Tested Configuration
A fire rating is valid only for the specific system that was tested. Changing any component can affect the classification.
Many Factors Influence the Classification
Classification depends on panel thickness, mounting method, substructure type, air cavity, insulation (if any) and the complete test system.
Tested to Applicable Standards
Samrat offers fire-retardant Exterior HPL options tested to internationally recognized standards for a wide range of applications.
Fire Performance Certifications
Product Range and Specifications
Exterior HPL Panel Sizes, Thicknesses and Grades
A complete range of sizes, thicknesses and finish options to suit modern architectural requirements across the world
| Specification | Available options |
|---|---|
|
Product type
|
Exterior Compact HPL |
|
Surface protection
|
Single-side exterior / double-side exterior |
|
Standard thicknesses
|
6 mm, 8 mm, 10 mm, 12 mm |
|
Other thicknesses
|
Subject to project requirement |
|
Standard sizes
|
1300 × 3050 mm, 1220 × 3050 mm, 1300 × 2800 mm, 1220 × 2800 mm, 1220 × 2440 mm. |
|
Core
|
Standard black core / fire-retardant core |
|
Surface categories
|
Solids, woods, stones, abstracts |
|
Finish options
|
Standard Suede Finish, Stone Finish, Wood Finish. |
|
Fire grade
|
Available subject to thickness and test classification |
|
Custom colours
|
Subject to minimum quantities |
|
Warranty
|
According to applicable product and region |

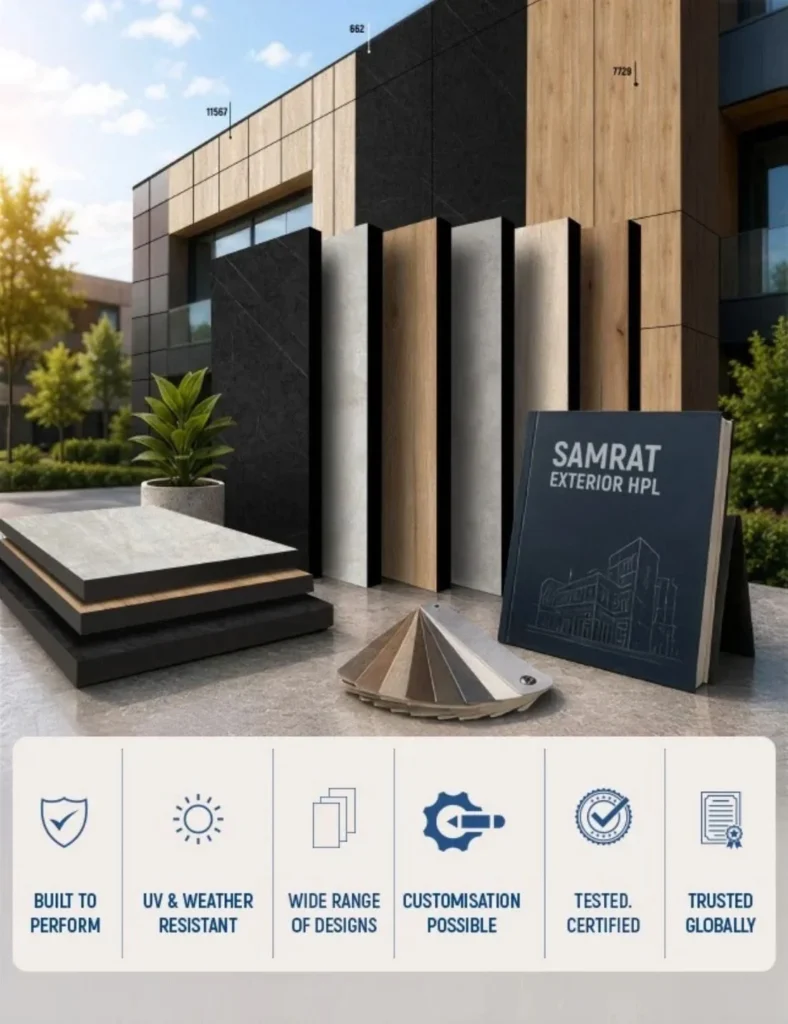

Colours, Designs and Finishes

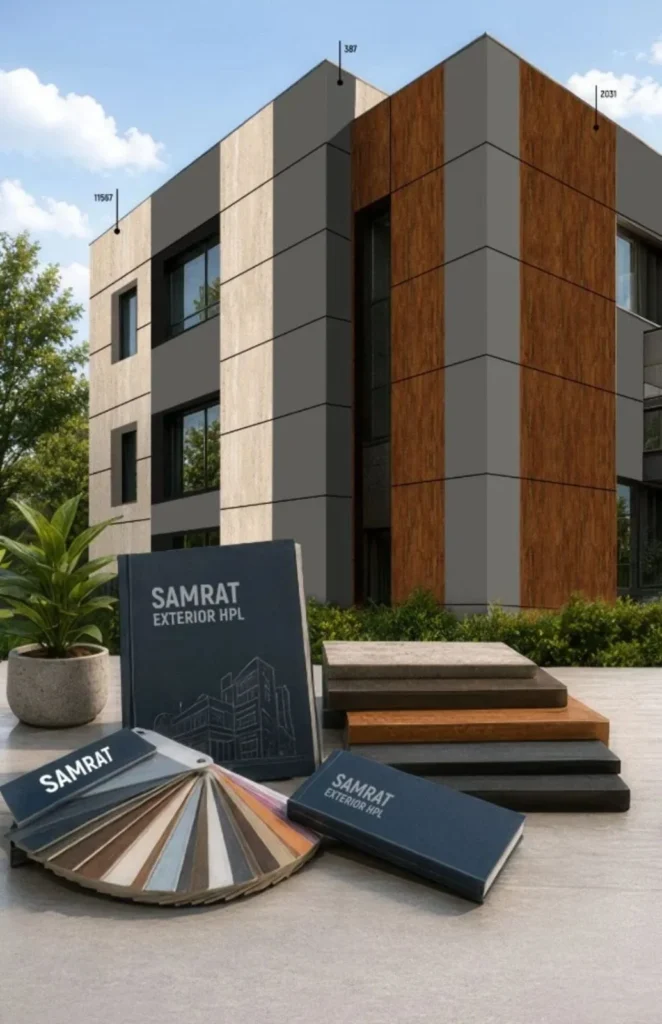

Exterior HPL Colours and Design Collection
A curated range of carefully crafted decors and finishes that bring architectural visions to life and stand the test of time.
One of the most extensive exterior HPL collections, designed for contemporary façades worldwide.
Timeless solids in a wide spectrum of tones.
Natural wood aesthetics with long-lasting beauty.
Inspired by nature. Built for performance.
Modern metallic finishes for striking façades.
Creative textures and patterns for bold architecture.
Bespoke colours to match your unique project needs.

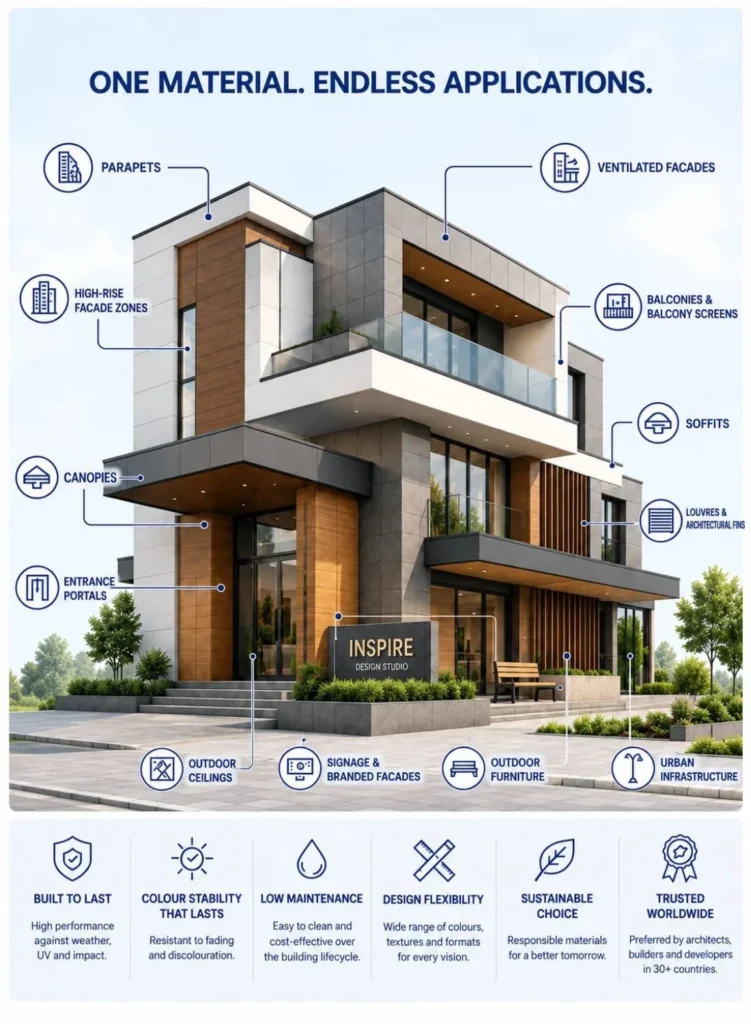

Facade Applications
Where Exterior HPL Can Be Used
Samrat Exterior HPL brings design freedom and long-term performance to every part of the facade. Engineered for exteriors. Built for every environment
Developments
Buildings
Institutions
Buildings
Railway Facilities
Developments
Logistics Buildings
Recreational Facilities
Performance Backed by Global Trust
Samrat Exterior HPL panels are manufactured in India with world-class technology and tested to international standards—trusted by architects, consultants, developers and fabricators across the globe.
Our products comply with global standards for quality, safety, environment and performance.
Successfully specified and installed in commercial, institutional, residential and public infrastructure projects worldwide.
Advanced manufacturing and strict quality control ensure uniform performance in every panel, every time.
From technical support to on-time delivery, we work as your reliable partner at every step.
Dedicated support for architects, fabricators and distributors across time zones, languages and markets.

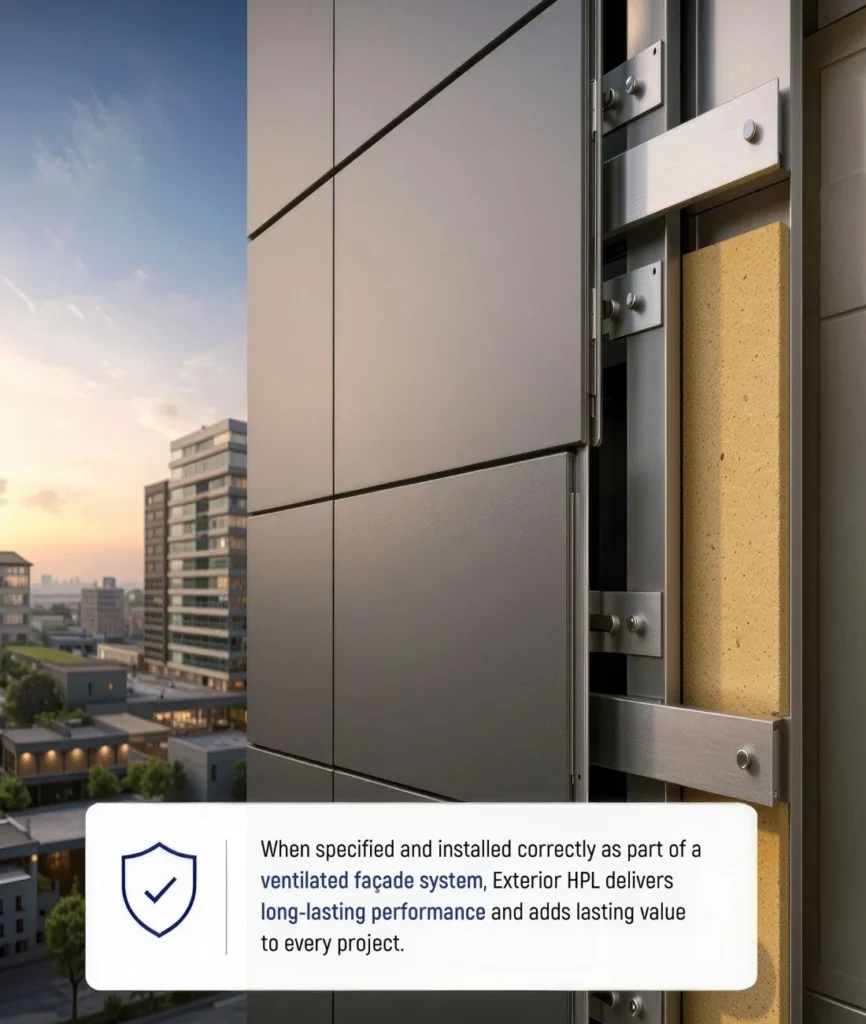

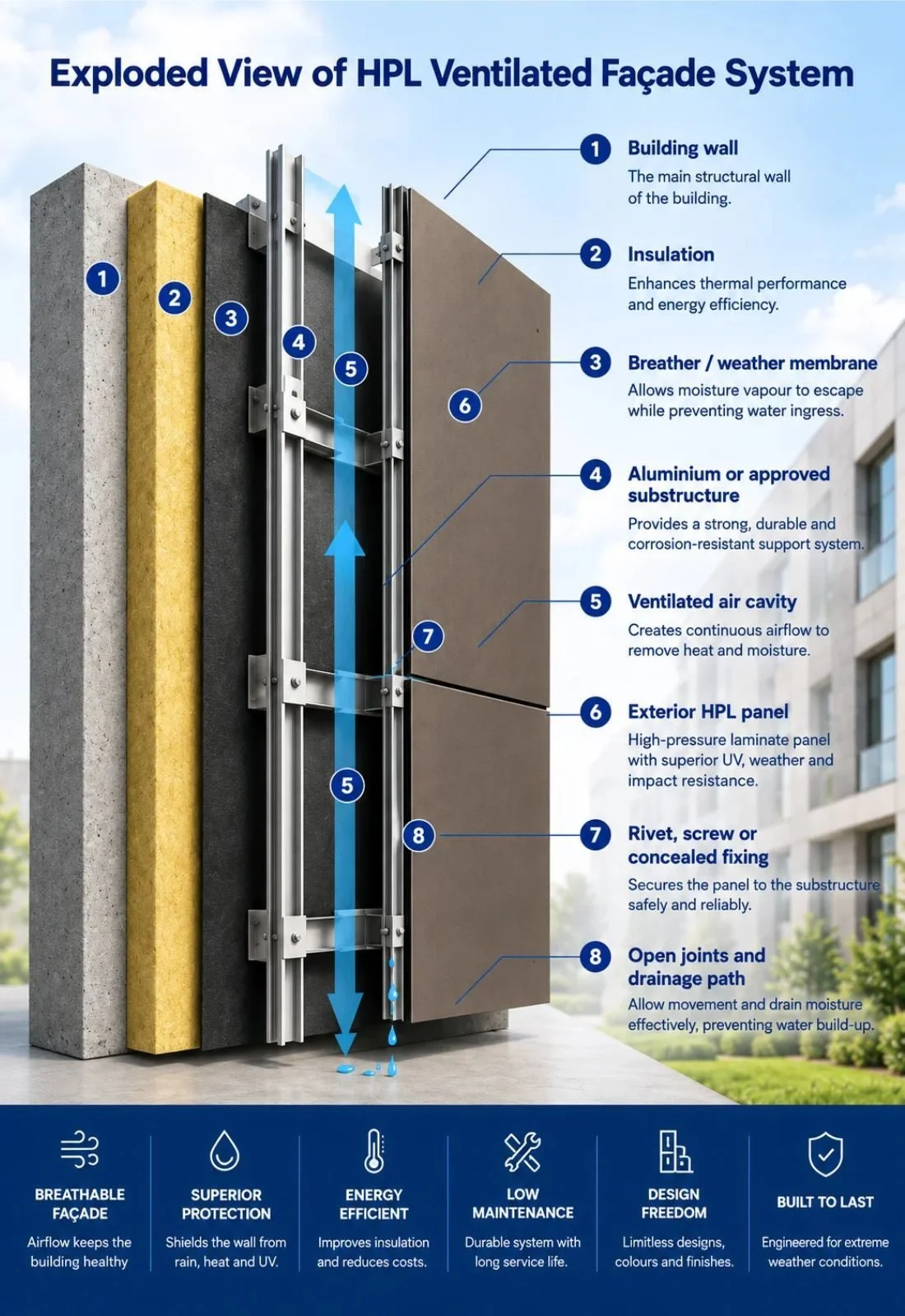

Ventilated Facade System
Exterior HPL in a Ventilated Facade System
Samrat Exterior HPL brings design freedom and long-term performance to every part of the facade. Engineered for exteriors. Built for every environment
Continuous airflow removes heat and moisture.
Drains away rainwater, preventing dampness and mould.
Improves energy efficiency of the overall wall assembly.
Protects the structural wall from rain, UV and temperature swings.
Individual panels can be removed and replaced with minimal disruption.
Wide choice of colours, finishes and formats for unique façades.
Fixing and Installation Systems
Exterior HPL Installation Methods
Samrat Exterior HPL can be installed using multiple proven systems. Choose the method that best suits your design intent, structure and performance requirements
Rivet Fixing
- Aluminium substructure
- Colour-matched rivets
- Fixed and sliding points
- Correct hole diameters
- Required perimeter and intermediate spacing
Screw Fixing
- Timber or approved metal substructure
- Appropriate stainless-steel fasteners
- Correct pilot-hole and expansion provision
Mechanical Fixing
- Suitable for projects requiring a cleaner façade appearance
- System to be technically approved
Fixing
- Use only as part of a tested and approved façade adhesive system
- Observe substrate, primer, tape, adhesive and climatic requirements
Exterior HPL Compared with Other Facade Materials
Exterior HPL delivers the ideal balance of design, durability and low maintenance for modern façades. See how it compares with other commonly used materials.
| CRITERIA | EXTERIOR HPL (SAMRAT) | ACP (ALUMINIUM COMPOSITE PANEL) | FIBRE CEMENT CLADDING | NATURAL WOOD CLADDING |
|---|---|---|---|---|
| Design flexibility Colours, textures, finishes |
Very High
100+ colours, woodgrains, stones, metals and custom options
|
Moderate Limited colours, mostly solid | Moderate Limited textures, mainly cement finish | Natural only Dependent on timber species |
| UV & weather performance Colour stability |
Excellent
3000h Xenon tested, High UV & weather stability
|
Good PVDF coating based, may fade over time | Good Generally stable | Low Fades, greys, requires treatment |
| Maintenance requirement |
Very Low
Easy to clean, no painting required
|
Low Easy to clean | Moderate Periodic cleaning, sealing recommended | High Regular coating, sealing & maintenance |
| Impact & scratch resistance |
Excellent
High impact strength, scratch & abrasion resistant
|
Moderate Can dent, especially thin sheets | Good Resistant but brittle at edges | Variable Softwoods dent easily, hardwoods better |
| Fire performance |
Excellent
B-s1, d0 (EN 13501-1), low flame spread
|
Moderate Fire core grade needed, varies by product | Excellent A1 / Non-combustible | Poor to Moderate Combustible, higher fire risk |
| Dimensional stability |
Excellent
Stable in all climates, low movement
|
Good Stable | Good Stable | Low Expands, contracts with humidity |
| Water resistance |
Excellent
Very low absorption, ideal for all climates
|
Good Water resistant | Moderate Porous, absorbs moisture over time | Low Absorbs moisture, risk of decay |
| Environmental credentials |
Excellent
EPD, FSC® available, low environmental impact
|
Moderate Recyclable core, depends on type | Moderate Higher embodied energy, cement based | Good Renewable if responsibly sourced |
| Installation & replacement |
Excellent
Lightweight, easy installation & simple panel replacement
|
Good Easy & fast installation | Moderate Heavier, generates dust, more time | Moderate Easy to install but replacement varies |
| Expected service life* When installed correctly |
30+ years
Proven global track record
|
15 – 20 years Coating life dependent | 20 – 25 years Condition dependent | 10 – 15 years With high maintenance |
| Lifecycle cost Overall cost of ownership |
Very Low
Low maintenance, long service life
|
Low Low maintenance | Moderate Maintenance & repair costs over time | High High maintenance cost over life |
Tested to international standards for long-term performance.
Extensive collection of colours, textures and finishes.
Fire-safe, impact resistant and compliant with strict standards.
Resistant to UV, rain, humidity, heat and freeze-thaw cycles.
Lightweight panels for faster installation and simple replacement.
Lower maintenance and longer service life reduce total cost.
